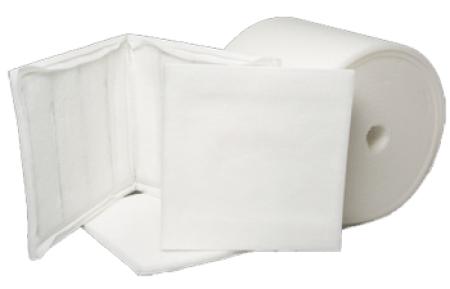

DS-560 Diffusion Media (62" x 62")

DS-560 Premium Diffusion Media

• Provides superior intake air filtration for automotive refinishing facilities and industrial assembly plants.

• The premium filter where uniform air distribution and laminar air flow is an absolute necessity.

• Comparable to products manufactured by: Air Filtration Co. (Laminar III Series); Air Flow Technology (FF-560 GX); Chemco (FF-560 GX); Koch Filter (KDF 600); Viledon (PA 560 G-10); Viskon-Aire (T-700/G).

Manufactured to the highest quality standards

• Constructed from high performance, non-breakable synthetic fibers using a layering manufacturing process to produce a progressive density filter media, ensuring high depth loading and dust holding capacity with limited pressure drop for optimal performance.

• Thermally bonded filter media, incorporating a non-migrating tackifier applied to each interlocking synthetic fiber to prevent break-off and retain paint damaging particles.

• Air exiting side is reinforced with a high temperature resistant and supporting woven open-mesh scrim.

• Extensive testing to ensure fiber design prevents 99%+ of paint damaging particles (contaminants larger than 7-10 microns) from migrating through the filter due to variable air flow and/or system vibration, even under varying temperatures.
